CWWK Mini PC Fanless Industrial i3-5005U, 2x RS232/RS485 COM, 2 x Gigabit LAN, Micro Embedded Mini Computer Box, NO RAM/SSD/OS, DDR3, mSATA, SIM, SATA, Mini-PCIe, HD, VGA, 6USB

Marchio: CWWK
Sistema operativo: No OS, Press Delete repeatedly upon power-on to enter BIOS for testing
Modello CPU: Core i3-5005U
Velocità CPU: 2 GHz
Dimensioni cache: 3 MB
Descrizione scheda grafica: Integrato
Usi specifici del prodotto: Istruzione, Lavoro
Tipo di design del personal computer: Mini PC
Nome modello: CWWK-2L
Componenti inclusi: Antennas, Mini PC Unit, Power Adapter, SATA cable, Screws

- [i3-5005U & OS Flexibility] Powered by a 5th Gen i3-5005U (2C/4T, 2.00GHz) optimized for stable 24/7 continuous operation in automation terminals. SSD variants come pre-loaded with Win10 Pro (Unactivated, for out-of-the-box testing). Fully supports Legacy Boot (CSM) and UEFI, engineered to run custom Win10/11 LTSC, Win-Embedded, and Linux

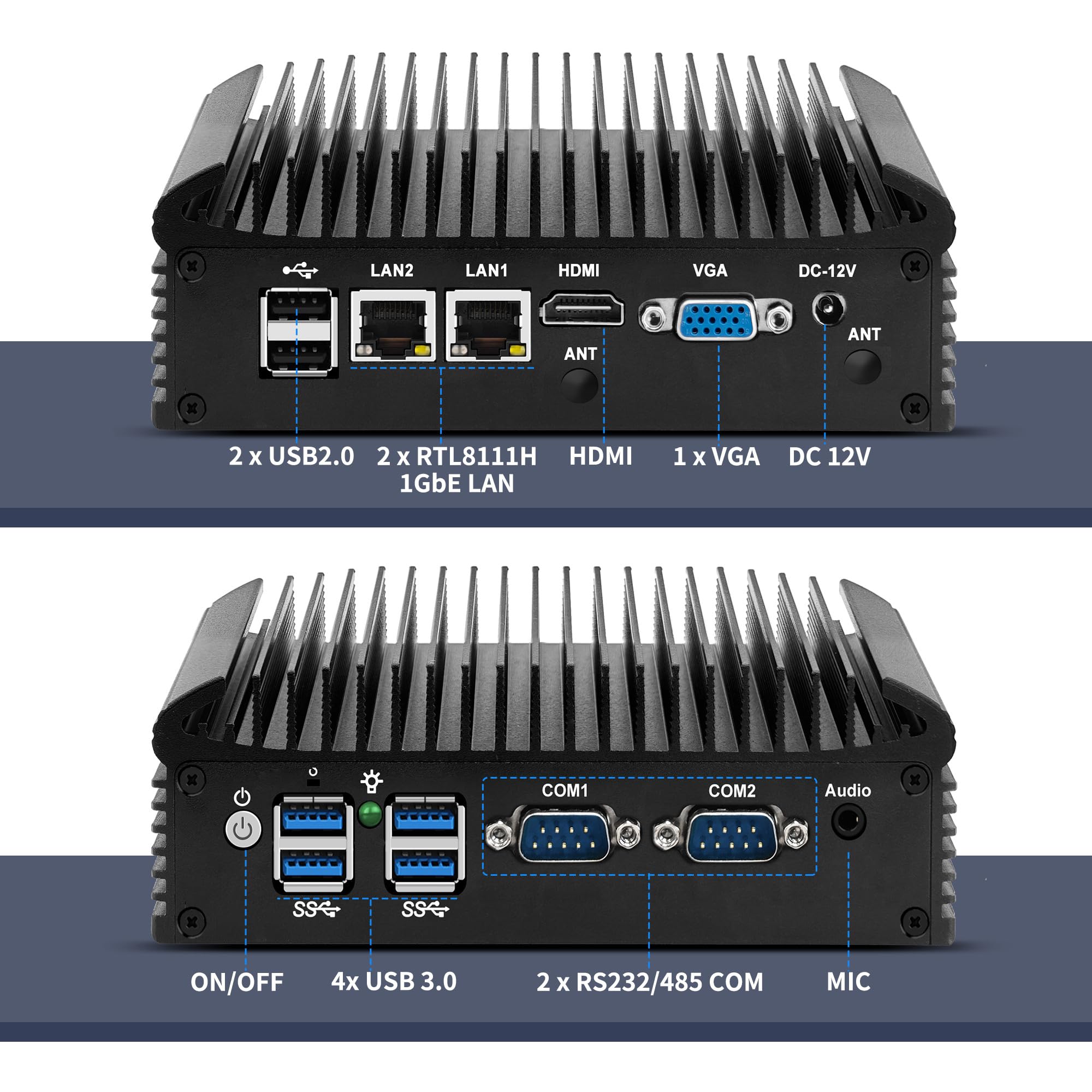

- [Dual LAN & Dual COM Serial] Equipped with 2x RTL8111H Gigabit LAN, supporting Link Aggregation and Network Isolation. Features 2x DB9 COM ports (Default RS232, jumper-configurable to RS485), ideal for PLC, CNC, and field device communication. Supports Auto Power On (AT/ATX jumper-controlled), WOL, PXE, and Hardware WDT for auto-reset, ensuring unattended reliability
- [DDR3L Memory & Versatile I/O] Features 1x SO-DIMM slot supporting up to 8GB 1333/1600MHz DDR3L. Includes 4x USB 3.0 and 2x USB 2.0 ports for extensive legacy peripheral connectivity. Dual display support via HD1.4 + VGA. Equipped with a 3.5mm Audio port and a dedicated Clear CMOS jumper for easy maintenance

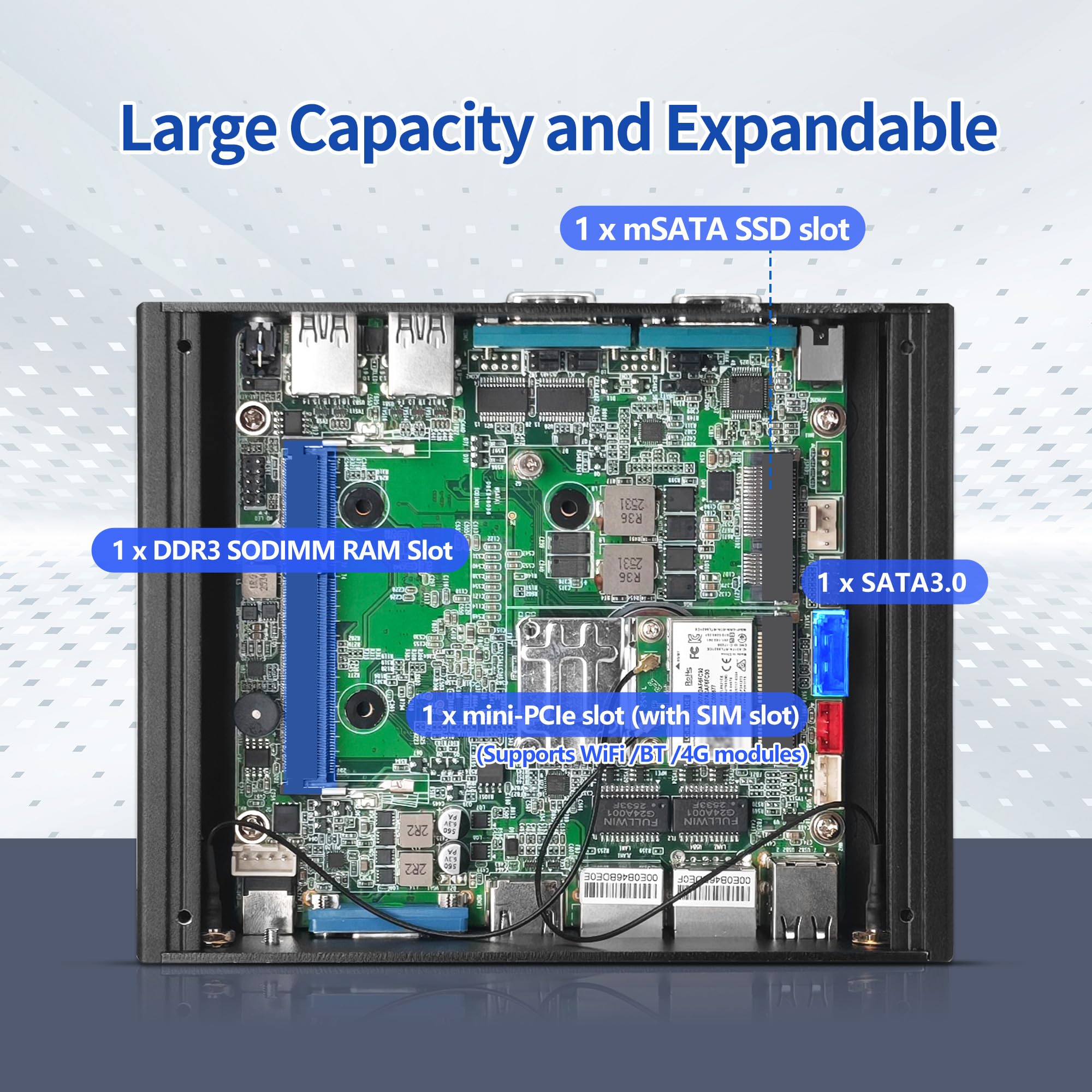

- [Wireless Network & Flexible Storage] Pre-installed with a reliable WiFi module (antennas included). The Mini-PCIe slot (with SIM card slot) can alternatively be upgraded to a 4G/LTE module by replacing the WiFi card. Features 1x Full-size mSATA slot and 1x SATA 3.0 port for dual-drive storage (2.5" cable included). Supports VESA and rugged embedded wall-mount
- [24/7 Fanless Chassis & Reliability] The fanless rugged chassis ensures silent, dust-proof operation and 24/7 non-stop reliability. Engineered for harsh industrial environments, it supports an extreme operating temperature range of -20 to 60℃. All units undergo rigorous factory testing. We provide an English electronic manual and official technical support from CWWK
